Product Description

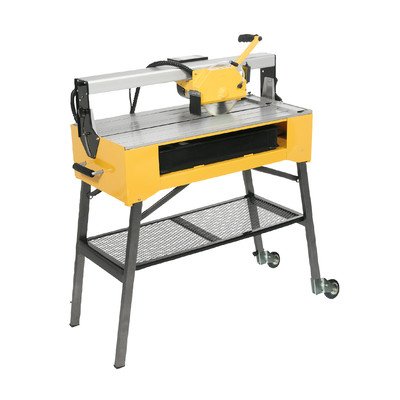

Great features and a great price make this bridge tile saw the right choice for you. 1-year limited warranty. Blade Diameter (in.): 8, Speed - No Load (RPM): 1,100, HP: 1 1/2, Arbor Size (in.): 5/8, Engine Speed (RPM): 3,550, Cutting Length (in.): 24, Cutting Thickness (in.): 1 3/4
Product Details
- Amazon Sales Rank: #13333 in Home Improvement
- Brand: QEP
- Model: 83200
- Number of items: 1
- Dimensions: 47.00" h x18.00" w x37.00" l,83.00 pounds
Features
- Powerful 1-1/2 HP, 3550 rpm motor, 120 Volts with North American Plug
- Convenient stand with rear locking wheels
- Adjustable tilting head offers quick and easy 45° to 90° miter cuts
- Enclosed dual water spray system evenly distributes water flow, extending the life of the diamond blade
- Includes 8-Inch continuous rim diamond blade
Customer Reviews
Most helpful customer reviews
62 of 63 people found the following review helpful.
The right choice
By J. Aman
I shopped everywhere for a tile saw. I had a kitchen counter (50 sq. ft.) and a kitchen and den floor to tile (650 sq. ft.). I originally bought a tile cutter and it only took me a few minutes to take that back. I bought this saw hoping it would be okay and also because it came with a stand. It worked almost flawlessly. The only problems I had were with the water pump and the slide on the back gauge for angle cuts was sticking on a screw that appeared to serve no purpose so I removed that. The pump would only come on if tapped, but after cutting about 100 tiles it seemed to operate fine from that point on. If I had one thing to change about the saw it would be the wheels on the bottom of the cart. That don't work that well, but that's something I will rectify shortly. I give it five stars because to me it was well worth the money. I would buy it all over again.
39 of 39 people found the following review helpful.
4.5 out of 5 for this one, not sure why others are complaining...
By Rob
I almost stopped unpacking this and returned it to Lowes (got it for $279 today on sale) from reading the reviews and I was very hesitant, but when I unpacked it, everything was pretty much set up nicely and snapped into place.
The ONE thing that I can see why people rated it lower was due to the same problem of the vibration of the blade. I put on a brand new Dewalt diamond 8 inch blade and I didn't have it completely clamped into place, because when I turned it on, it was VERY wobly. I stopped, opened up the blade change system, and made sure that I held the blade right up against the black interior blade holder while I squeezed it together with the outer aluminum colored blade holder and screwed on the screw. Instantly different! So, make sure you do this and double/triple check if the blade is not true and rotating in sync with how a normal blade should rotate.
So, on to the good stuff. I had been cutting tile with a cheapo 80 dollar table top tile saw (chippy-mcgee from HD) and then got a Ryobi mitre saw that was the worst thing every to try and cut a straight line. I spent 5 hours trying to get a perfect set up to simply cut a tile, unsuccessfully after 6 attempts, I threw in the towell and told the wife that if I was going to do this 2nd shower perfectly with the travertine tile, I would need better equipment. HD had some nice products, but they were all $500 and $700 respectively. I couldn't justify that. But neither could I justify renting a machine for $50 per day and use it for 24 hours, rushing to get through and probably end up spending $100+ on a rental.
So, off to Sears, and they had NOTHING in stock to see...Disappointed, I ran to Lowes because they had some tile saws online but this one I'm reviewing wasn't on their website. I got there and it was on sale for under $280! AND it could cut over the size of 16" travertine that I needed to use it for. Perfect.
Got home, opened the box, everything was packed nicely, protected well and seemed to be 90% together when I took it out of the box. Needed to put in the blade (again, refer to the above, MAKE SURE you are sandwiching that blade in between the inner and outer blade holding collars before tightening it up snug), the laser guide (which CAN be made exact, you just have to be a bit patient and fine tune it prior to putting it on the saw, and fine tune it a bit more when you put it on the saw...patience pays off) requires 2 AAA batteries, so pick some up if you plan on using it.
The handle and the wheels were the last things to be put on and the wheels ARE useful if you put them about 1/4 to 1/2 inch above the ground toward the end that the motor will stay at. Lean it toward the wheels and it rolls around the shop with ease, and the frame doesn't feel flimsy at all to me, especially when I'm rolling it around, it's pretty heavy duty!
As for the grill looking shelf, it does attach from the inside which is strange, but 4 long zip-ties later, the thing is as snug and secure as you could want. and it seems to be a great idea and very useful when finding a place to put your cut or uncut tile.
So, I started it up and immediately had to cut a tile 5 1/4 inches. Did so in about 45 seconds from set up to the cut being finished. The cut was so smooth, I didn't know which was the original side and which was the cut. Only some slight cut marks on the cut side were visible, so that made me feel MUCH better about my purchase.
I needed to cut another piece at 5 1/4 inches on one end and 5 5/16 on the other. This thing set up, and I squared it initially using a solid one piece square that I had, and then simply adjusted the square about .5 of a degree. Ta-da, 5 1/4 and 5 5/16. Its just about too damn good to be true, but this saw already is a winner in my book.
It also cleans up well and has a well placed plug to help drain the water out. You can basically wipe it down with a mildly damp towell like you're drying your car. I found it not to be messy clean up at all and it looked relatively new after clean up. The pump seems well enclosed and I would trim out the power supply cord holder that is a keyhole fashioned hole to hold the pumps power supply cord. It was way too snug, and if you want to take it apart and make sure there's no water left in the pump and clean it to extend the life of your equipment, I would suggest taking some snippers and opening up that hole to let the cord safely sit and be pulled out without it being an act of congress to get it loose from the plastic box inside the water pan that it sits in.
With a little patience and time spent on set up, I could easily refer this to a friend.
I think I got what I paid for and then some. Don't hesitate to get the $30 warranty at Lowes like I did, just in case you get a lemon, but if you don't, this sucker is pretty useful and mechanically sound for it's price!
20 of 20 people found the following review helpful.Good option for the money
By dfarr
I've done quite a few home tiling jobs and had always gotten along with my small wet saw and my Rotozip with a diamond blade. My most recent job involved 20" porcelain tiles and I knew it would require a bigger saw. I decided on the QEP bridge saw because I needed at least 20" rip capacity and didn't want to pay a fortune.
I was very pleased with the cut that this saw produced (even with the stock blade)and I really liked the concept of the saw moving and the tile being stationary. I bought a Hotdog replacement blade because I've read so many bad reviews on stock blades that come with saws but I can not see a whole lot of difference between the two. They both produce smooth cuts. The motor has plenty of power to cut through these large tiles and I haven't had any problem with the pump. The reservoir pan catches most of the water and there is very little overspray during the cut. None of the spray comes toward the operator so you don't end up getting wet.
As others have mentioned the wheels as designed are a joke the way they clamp onto the legs. I ended up drilling two holes and bolting the wheels fast. This made the wheels work very good for moving the saw around.
This is a large bulky saw and not the easiest thing to move around but I only use it in my garage and it moves easily on the concrete floor. Overall I'm very satisfied with this saw for the price paid and the occasional use I will give it.
